SiC MOSFET Modules

All	Datasheet	PART NO.	Picture	Product Status	BVDSS (V)	RDS (on) (mΩ)Typ	RDS (on) (mΩ) Max	ID (A) @25°C	ID (A) @100°C	Configuration	VGS (V)	VTH (V) Typ	Package	CAD模型	電路圖

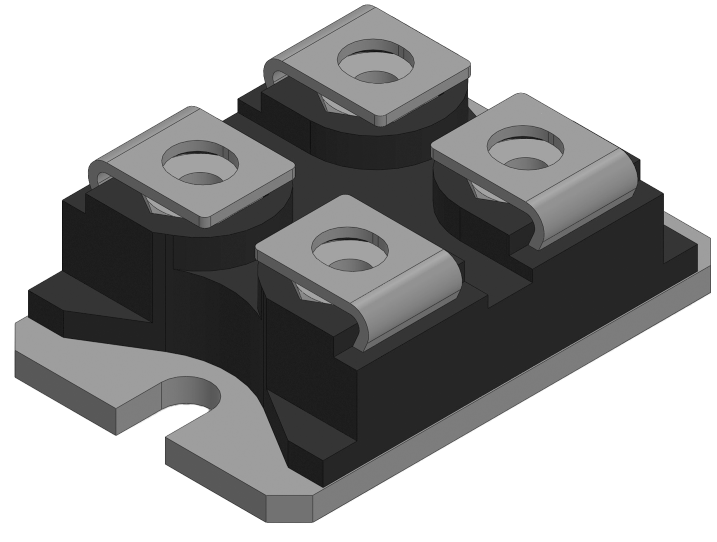

		DACMI060N120BZK		New	1200	40	50	60	45	Single	20	2.7	SOT-227
		DACMI120N120BZK		Active	1200	20	25	120	90	Single	20	2.5	SOT-227
		DACMI150N120BZK3		New	1200	14	18	150	100	Single	15	2.5	SOT-227
		DACMI180N120BZK2		New	1200	16	18	180	135	Single	18	2.5	SOT-227
		DACMI240N120BZK2		Active	1200	10	11	240	180	Single	18	2.5	SOT-227
		DACMI250N120BZK3		New	1200	13	14	250	180	Single	15	2.5	SOT-227
		DACMI300N120BZK3		New	1200	7.5	10	300	220	Single	15	-	SOT-227
		DACMI350N120BZK3		New	1200	9	10	350	250	Single	15	-	SOT-227
		DACMI450N120BZK3		New	1200	5.0	7.0	450	330	Single	15	2.5	SOT-227
		DACMI060N170BZK		Active	1700	45	70	60	40	Single	20	3.4	SOT-227
		DACMI120N170BZK		New	1700	25	35	120	80	Single	20	-	SOT-227
		DACMI180N170BZK		New	1700	15	24	180	120	Single	20	-	SOT-227
		DACMI240N170BZK		New	1700	12.5	18	240	160	Single	20	-	SOT-227
		DACMI060N120BZ		New	1200	40	50	60	45	Single	20	-	SOT-227
		DACMI120N120BZ		New	1200	20	25	120	90	Single	20	2.5	SOT-227
		DACMI180N120BZ2		New	1200	15	18	180	135	Single	18	2.5	SOT-227
		DACMI240N120BZ2		New	1200	10	12.5	240	180	Single	18	-	SOT-227
		DACMI134N120BZ3		New	1200	20	26	134	90	Single	15	-	SOT-227
		DACMI150N120BZ3		New	1200	14	18	150	110	Single	15	-	SOT-227
		DACMI300N120BZ3		New	1200	7.0	9.0	300	220	Single	15	-	SOT-227
		DACMI060N170BZ		New	1700	45	70	60	40	Single	20	3.4	SOT-227
		DACMI120N170BZ		New	1700	25	35	120	80	Single	20	-	SOT-227
		DACMI180N170BZ		New	1700	15	24	180	120	Single	20	-	SOT-227
		DACMI240N170BZ		New	1700	12.5	18	240	160	Single	20	-	SOT-227

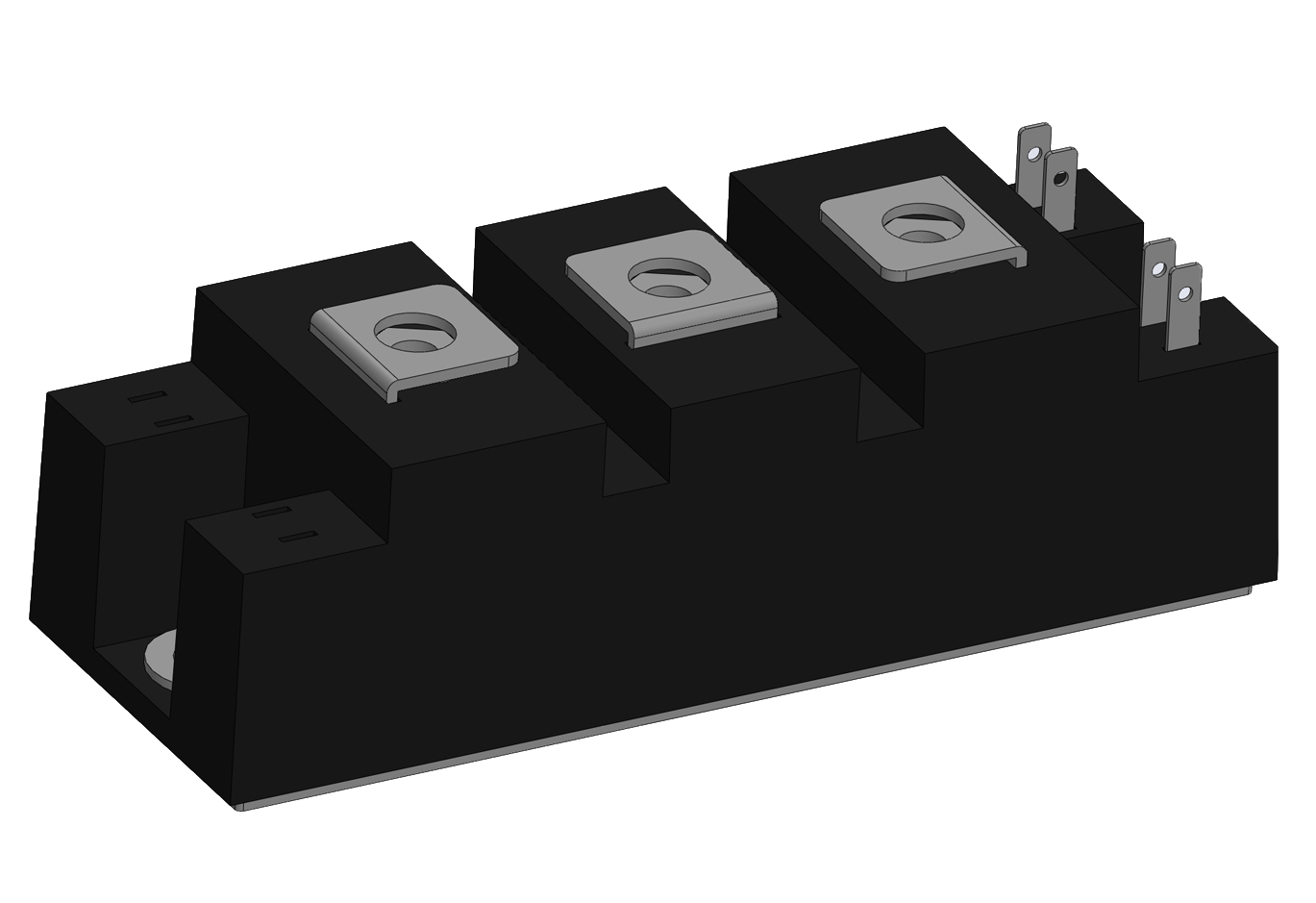

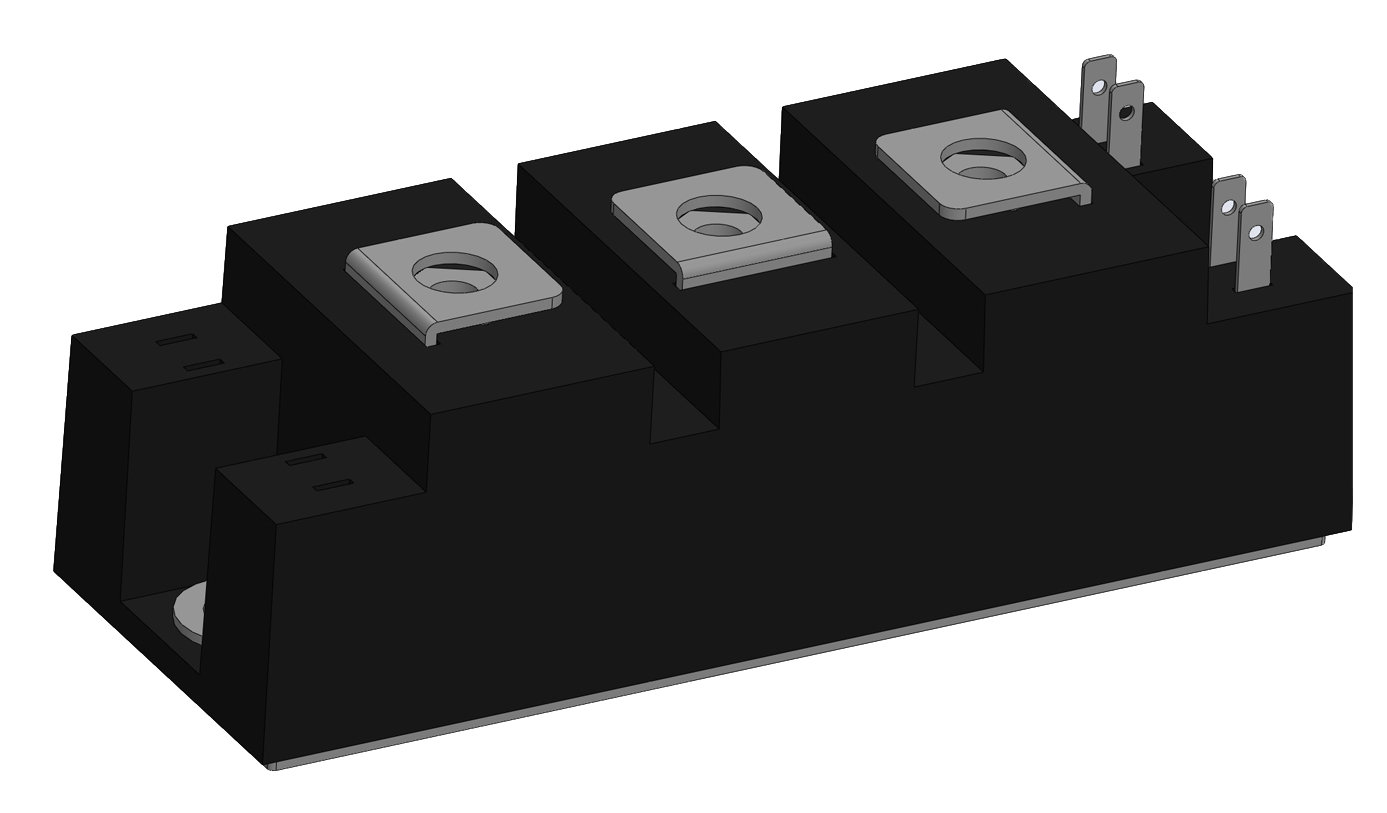

		DACMH40N1200		Active	1200	60	80	40	25	Half-Bridge	20	2.4	HB-9434
		DACMH80N1200		Active	1200	28	34	80	50	Half-Bridge	20	2.5	HB-9434
		DACMH120N1200		Active	1200	20	25	120	76	Half-Bridge	20	2.5	HB-9434
		DACMH160N1200		Active	1200	16	20	160	110	Half-Bridge	20	2.5	HB-9434
		DACMH200N1200		Active	1200	13	15	200	125	Half-Bridge	20	2.5	HB-9434

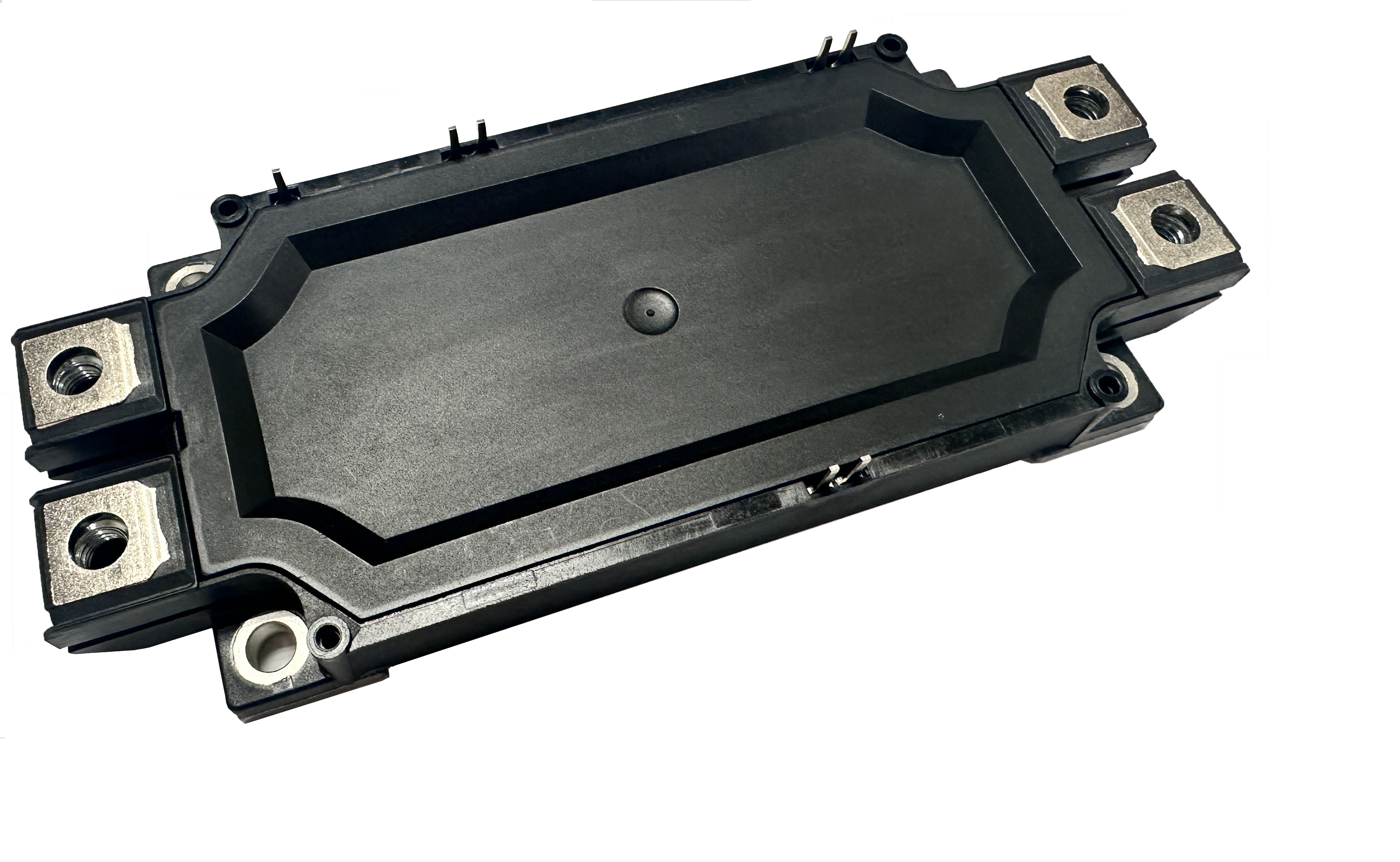

		DASMM450N120BH3		New	1200	5.8	-	450	300	Half-Bridge	15	2.1	HBA-15262
