Datasheet | PART NO. | Picture | Product Status | BVDSS (V) | RDS (on) (mΩ) Typ | RDS (on) (mΩ) Max | ID (A) @25°C | ID (A) @100°C | VGS (V) | VTH (V) Typ | Configuration | Package | CAD模型 | 電路圖 |
|
|
 |
DAC023N065LY3
|
 |

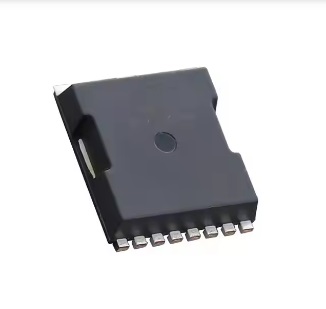

Active | 650 | 23 | 32 | 96 | 66 | -4 to +18 | 3.1 | Single | Toll-8 | ||
|
|
|
DAC025N065LZ3
|
 |
Active | 650 | 25 | 32 | 85 | 60 | -4 to +15 | 2.8 | Single | Toll-8 | ||
|
|
|
DAC036N065PY4
|
 |

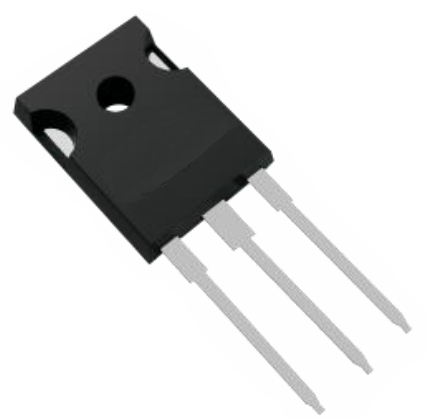

Active | 650 | 36 | 53 | 70 | 50 | -4 to +18 | 2.8 | Single | TO-247-3L | ||
|
|
|
DAC040N120PY4
|
 |
Active | 1200 | 40 | 56 | 58 | 41 | -3 to +18 | 3.0 | Single | TO-247-3L | ||
|
|
|
DAC080N120PY4
|
 |
Active | 1200 | 80 | 100 | 30 | 21 | -5 to +18 | 3.0 | Single | TO-247-3L | ||
|
|
|
DAC014N120ZZ3
|
 |
Active | 1200 | 14.5 | 19 | 155 | 100 | -4 to +15 | 2.5 | Single | TO-247-4L | ||
|
|
|
DAC018N120ZZ3
|
 |
Active | 1200 | 18 | 23 | 125 | 90 | -4 to +15 | 3.0 | Single | TO-247-4L | ||
|
|
|
DAC038N120ZZ3
|
 |
Active | 1200 | 38 | 48 | 67 | 47 | -4 to +15 | 2.7 | Single | TO-247-4L | ||
|
|
|
DAC017N120ZY3
|
 |
Active | 1200 | 17 | 23 | 125 | 90 | -4 to +18 | 3.0 | Single | TO-247-4L | ||
|
|
|
DAC035N120ZY3
|
 |
Active | 1200 | 35 | 48 | 67 | 47 | -4 to +18 | 3.1 | Single | TO-247-4L | ||
|
|
|
DAC080N120ZY4
|
 |
Active | 1200 | 80 | 100 | 31 | 21 | -5 to +18 | 3.0 | Single | TO-247-4L | ||
|
|
|
DAC021N120YY4
|
 |
Active | 1200 | 20.5 | 29.4 | 100 | 71 | -5 to +18 | 3.0 | Single | TO-247-4L | ||
|
|
|
DAC026N170ZY3
|
 |
Active | 1700 | 26 | 33 | 90 | 65 | -5 to +18 | 3.1 | Single | TO-247-4L |
